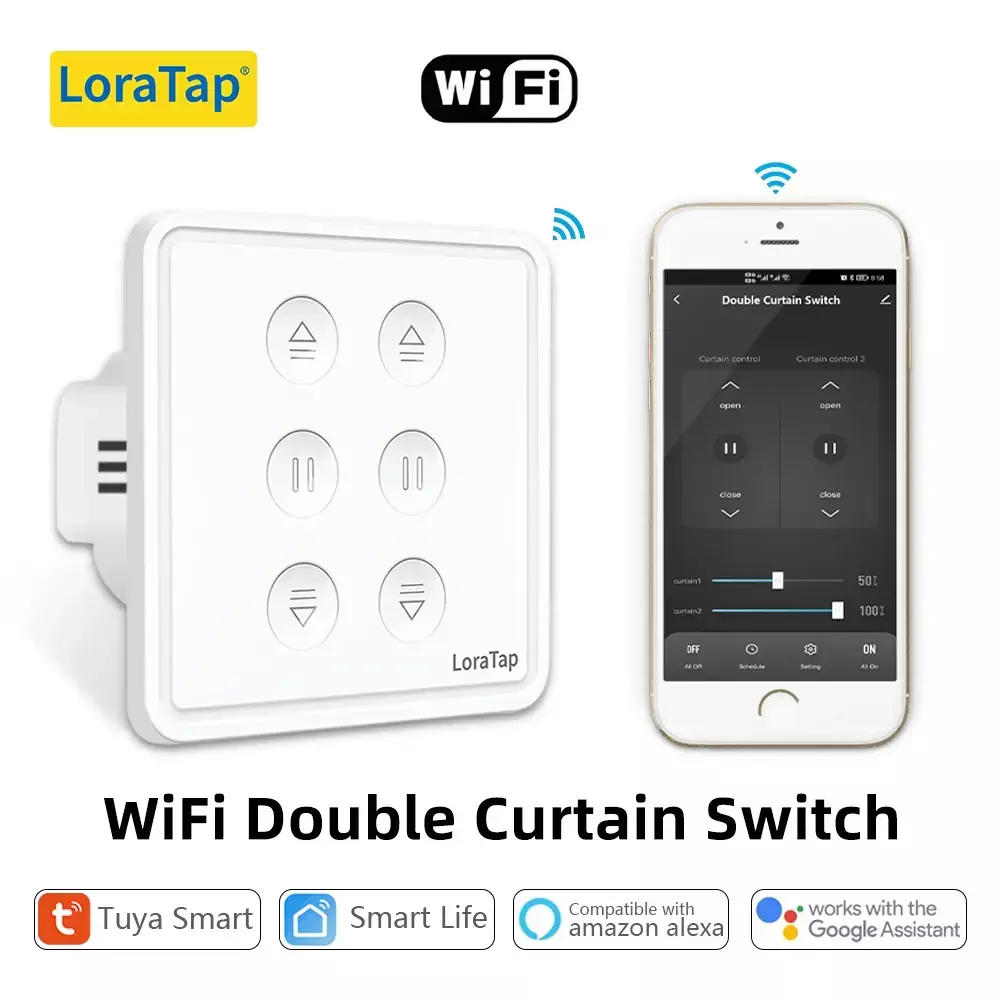

LoraTap WiFi Double Curtain Switch Module

The First Tuya Smart Life EU 502 Type Double Curtain Switch

- Double Curtain Switch
- EU Switch Size: 86mm*86mm*35mm
- Support Wi-Fi 2.4Ghz, NOT Support 5Ghz Wi-Fi
- Button Type: Push Button
- Patent Design

Note before Order

This is a Wi-Fi only Curtain Switch, it can’t work with our RF curtain remote. Please don’t buy the extra RF remote to add the remote control, they are not compatible.

- Please note at least 4 wires must be required for your motor, Live Wire 1, Live Wire 2 (for OPEN and CLOSE), Earth Wire and Neutral wire , otherwise it can't be connected to the motor.
- The switch can be compatible with any electric shutter motor with 100-250 VAC voltage input, 300W Max / Gang, but the neutral wire must be required for installation.
- Please be noted this is a double curtain switch, please contact us if you have any questions.

Hands-free Voice Control Smart Blind Switch

- Compatible with Alexa, Google Home
- With voice control to turn on and turn off the curtains.

Smart Life Tuya App Control

- Mobile App Remote Control
- App Timing
- Support Both IOS and Android

Physical Wall Switch Control

- This doube switch is a push button switch with 6 keys on the panel, you can control it on the switch panel directly.

More Possibilities on App Control

- Timing Control
- Check the curtain status in the App

Group Function and Device Sharing with App

You can create group in the APP to manage all the blinds in your house and share the device to all your family members.

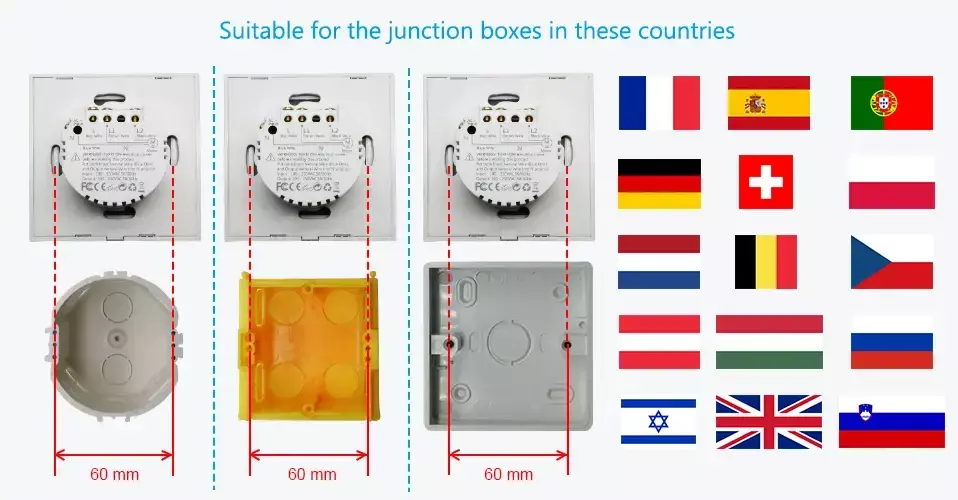

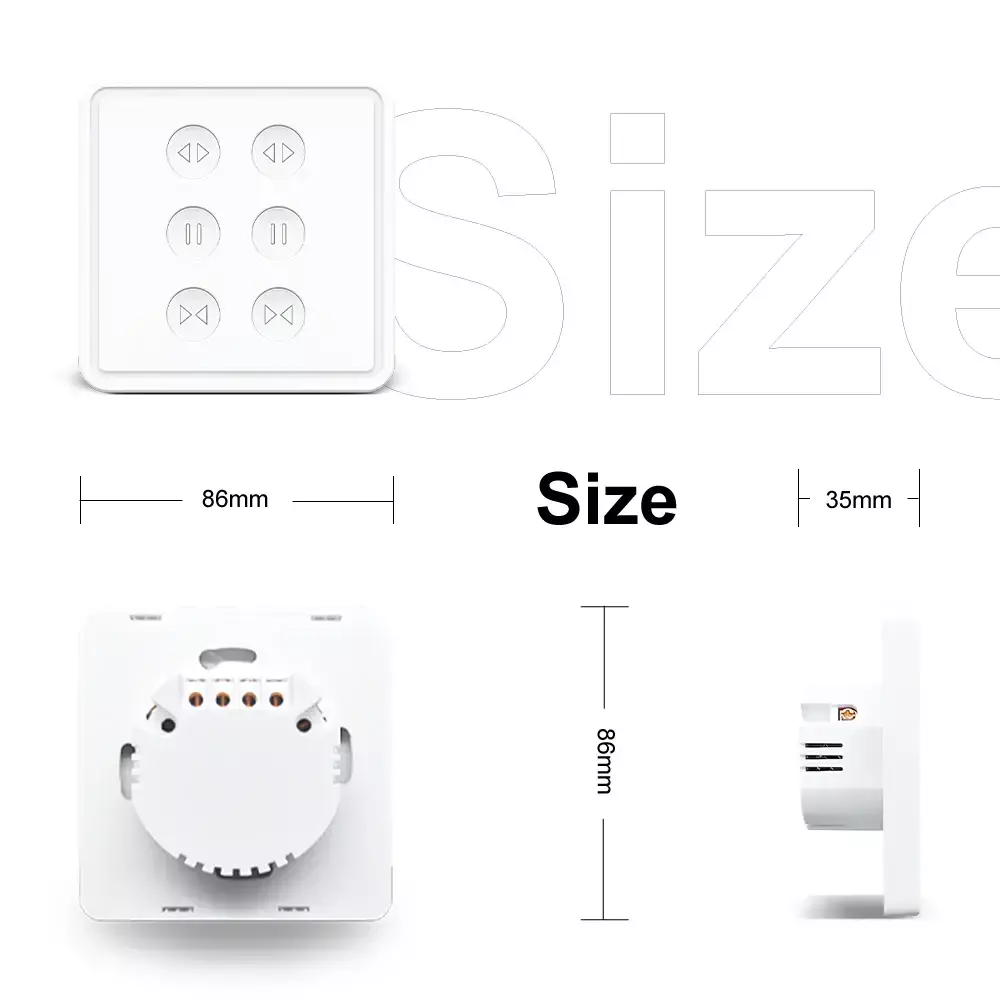

Switch Dimensions

- EU 502 Size
- Dimensions: 86mm*86mm*35mm
- Patent Design

Specification

Input voltage: 100-250 VAC, 50 / 60Hz
Wiring: Neutral Wire, L1, L2, Earth Wire
Max Load: below 300 W / gang
App Name: Smart Life or Tuya App
Wireless Protocol: Wi-Fi 2.4 GHz 802.11 b / g / n (Not support 5Ghz Wi-Fi)
Switch Channels: Double Control Curtain Switch
Standby Consumption: below 0.5W
Dimensions: 86mm*86mm*35mm
Button Type: Push Button
Plastic Material: Fireproof ABS
Produced by ISO9001 Factory: Yes
Patent Design: Yes

We have all the accessories you need in the box, you don't need to pay extra cost.

What's in the box?

1* Wi-Fi EU Double Curtain Switch(White Colour)
1 * Terminal for Neutral Wiring
1 * Blue Cable for Neutral Wiring
2 * Screw Kits
1 * User Guide

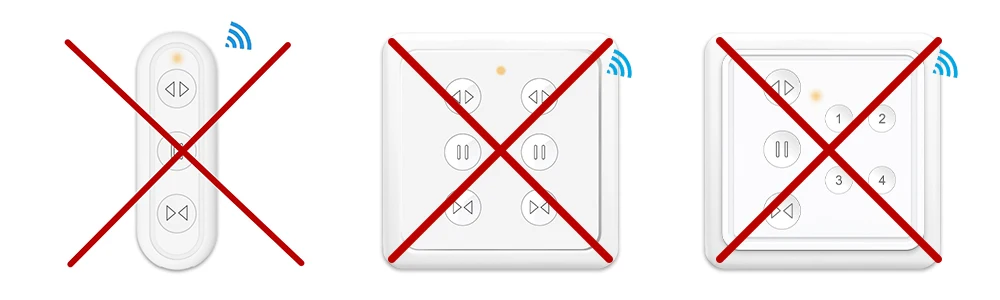

This is a WiFi Only Product. It can't work with any RF remote in our store.

Please don’t buy any extra RF remote in our store to work with this WiFi only curtain switch.
